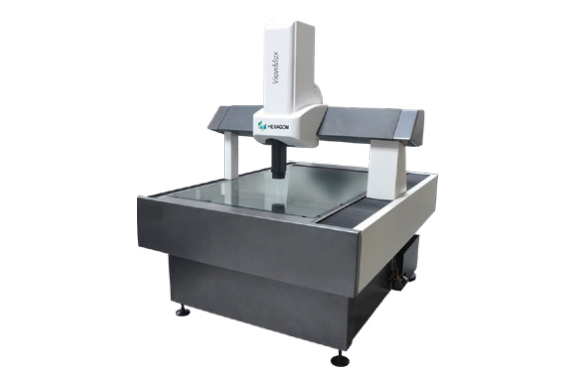

ViewMax L
Model: ViewMax L 60.50 / 60.80 / 80.100 / 100.120 / 120.150 / 180.220
Accuracy (μm): Exy: from 3.5 + L / 150
· Illumination system: In the face of some special objects to be measured, different light effects can be used to highlight the characteristics of the object to be measured, and the size of the object can be captured more accurately and the high-precision measurement function of the upper light source can be achieved;
· The application of pre-loaded air bearing and full air-floating guide rail technology, while adopting grinding-grade screw drive, high speed, no gap, sensitive and reliable, accurate positioning and high motion accuracy;
· Automatic functions of joystick control: auto focus, auto measurement, auto edge search, auto light adjustment, auto magnification switch to ensure high measurement efficiency;
· Mobile bridge structure, high-precision granite base and columns to ensure the long-term stability of the machine;
· German industrial-grade four-axis CNC control system, full servo closed-loop control, fully automatic measurement function;
· Triangle beam technology to ensure better rigidity-to-mass ratio of the machine and more stable accuracy;
· Programmable 8-quadrant, 16-channel LED upper light source and parallel contour cold light source;
· High-resolution color camera high-definition image effect, high-quality picture;
· Imported high-precision open grating system with a resolution of 0.4μm;
· Three-dimensional space compensation to ensure the high precision of the machine;
· METUS professional measurement software for selection and matching;
· Full automatic high precision automatic zoom lens;
· Equipped with PC-DMIS software.
Model: ViewMax L 60.50 / 60.80 / 80.100 / 100.120 / 120.150 / 180.220
Accuracy (μm): Exy: from 3.5 + L / 150
